Product introduction

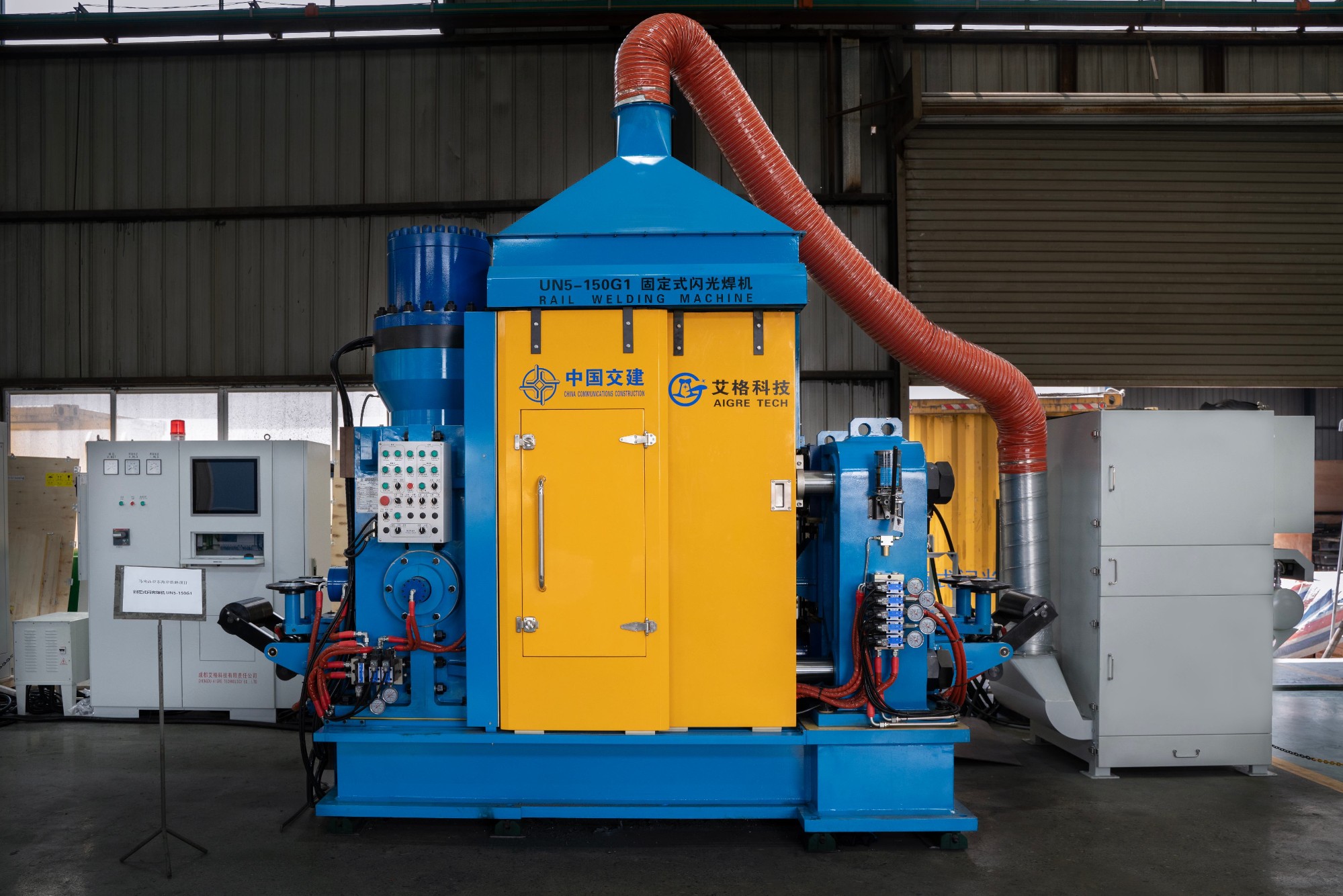

UN5-150G1 stationary flash-butt welder is suitable for base continuous rail welding operation. The equipment adopts four-axis structure which improves the stability and service life significantly. It is equipped with automatic alignment and pressure-retaining shearing function to ensure the appearance quality of joints, and it can weld all kinds of rails after replacing the electrode and shearing tool to meet a variety of rail welding standards.

UN5-150G series stationary flash-butt welder has been sold nearly 10 sets, successfully applied in China, Saudi Arabia, Nigeria, Venezuela, UAE, Serbia, Malaysia and other countries.

Product Features

1. Long life, the main body mechanism adopts four axes for guidance to increase the stability of the welder, making the life of the welder significantly improved.

2. High-precision servo motor control, can be automatically aligned before welding, high precision rail alignment, improve the quality of rail alignment and welding efficiency.

3. High automation, one-button operation, with automatic air quenching function after welding, to meet the requirements of quenched rail welding.

4. Environmental protection, the welder is equipped with a dust removal system to ensure a clean working environment.

Main Technical Parameters

Maximum weldable area: 10000mm²

Rated upsetting force: 800KN

Rated clamping force: 2000KN

Maximum short-circuit output current: 62000A

External power supply: 400KW

Rated voltage: 380V, 50HZ, Three-phase

Dimension: 3838*1600*3186mm

Net weight: 16500Kg
