Product Introduction

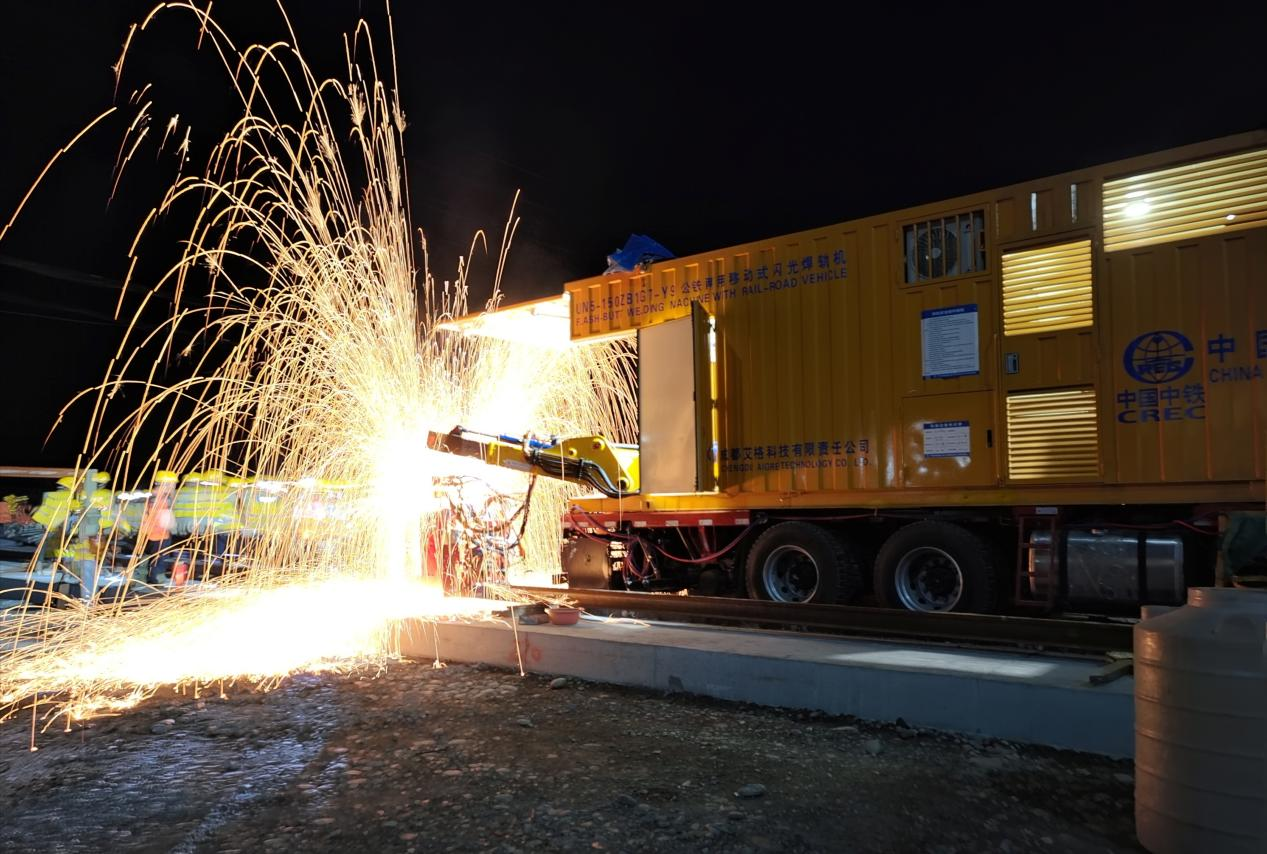

Flash-butt welder with rail-road vehicle is mainly composed of two major parts: UN5-150ZB1-Y9 mobile flash-butt welder and CA1253 dual-purpose rail welding vehicle. The rail-road welding vehicle realize the free switching of the two driving modes of highway and railroad, and can complete the rail welding in the construction of one-time laying continuous line of high-speed railroad with the speed of 350km/h, and also can complete the rail welding operation in the urban rail transit.

Product Features

1. This product integrates welding and mobility, switching between highway and railroad at any time, lower use and maintenance cost, creating higher value for customers.

2. Stable railroad operation running, high speed transfer to highway system.

Main Technical Parameters

Weldable rail type: 43-75Kg/m (UIC60, UIC54, AS68)

Welding stroke: 120mm

Climbing capacity: 40‰

Road running speed: 80Km/h (No-load condition)

Maximum speed (railroad straight line): 20Km/h

Maximum speed (railroad curve): 10Km/h

Generator power: 400KW

External power input power: 400KW 380V(three-phase)
