Product introduction

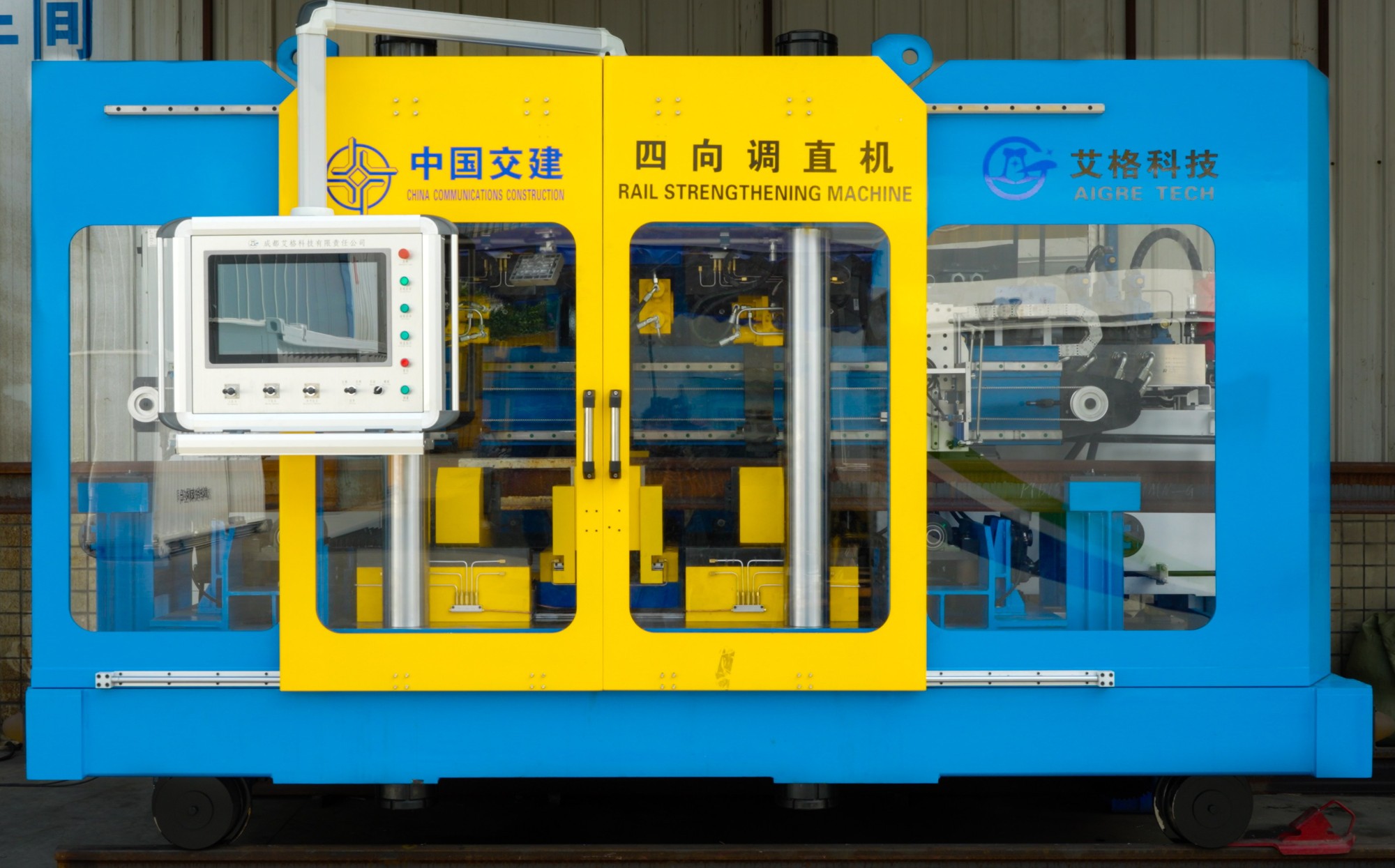

This product is the key equipment in the long rail welding production line, which consists of straightening device, laser measuring device, rail alignment clamping device, mobile vehicle device, electrical control system, data storage and recording system and other parts. It is a special equipment to measure and straighten the horizontal and vertical direction of the welded rail joint after welding, and it can automatically measure the straightness of the rail joint, generate the curve automatically and record and save the data.

Product Features

1.The human-computer interface is simple and clear, and the operation is friendly.

2.The straightening operation is carried out by rocker and button, realizing four-way straightening operation of rails.

3.Adopting high-precision non-contact measuring system to ensure the reliability of the control system and the precision of measurement and control. Real-time monitoring of rail straightness, and the data will be automatically generated and stored in the report, which is convenient for subsequent quality tracing.

4.Centralized lubrication system is adopted to ensure the long service life of the equipment.

Main Technical Parameters

Adapt to straighten rail profile (Kg/m): 50kg/m, 60kg/m, 75kg/m, etc.

Vertical maximum pressure: 2500KN

Horizontal maximum pressure: 1300KN

Maximum straightening stroke: 100mm

Straightening beat：≤5min

Equipment power: 40KW

Overall dimension: 4600*2250*2700mm

Net weight：23000Kg
