Product Features

1. Shearing by pressure.

2. There are two ways of manually hanging the shearing tool and without manually hanging it (head pressure retaining shearing pusher integrated type).

3. Adopting transverse clamping method ensures the quality and reliability of upset forging.

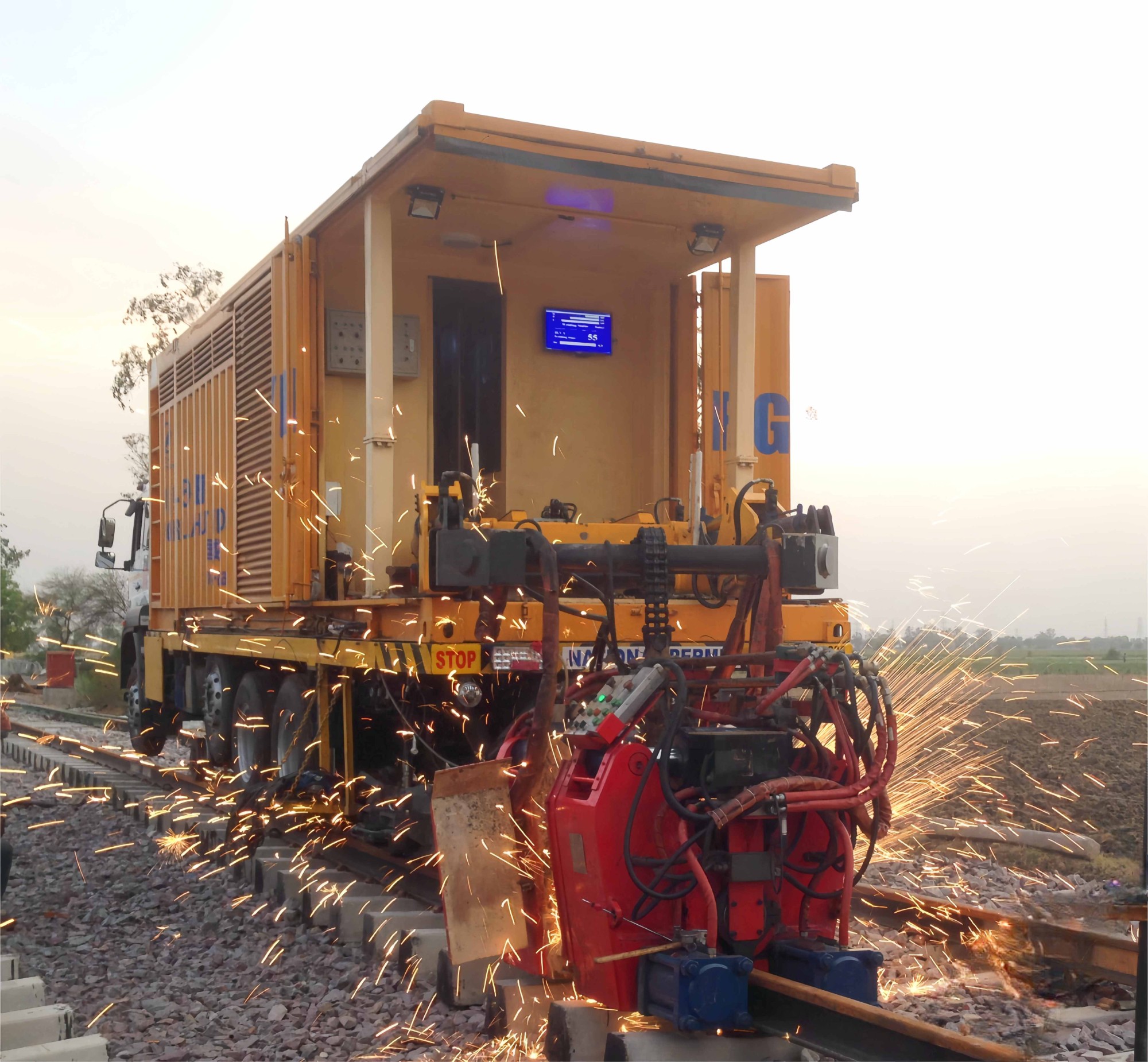

4. Adopting large clamping force and large upsetting force which is very suitable for site track unit welding and locking welding constriction of heavy loads and high speed railway.

Main Technical Parameters

Genset power: 400KW

Rated upsetting force: 1200KN

Maximum clamping force: 3000KN

Maximum weldable rail area: 10000mm²

Rated pressure of hydraulic system: 21MPa

Maximum welding stroke: 120mm

Total weight : 24t-25t

Application of Rail Type

43Kg/m、50Kg/m、60Kg/m、75Kg/m、BS80、BS90、UIC52、UIC54、UIC60 and so on.
