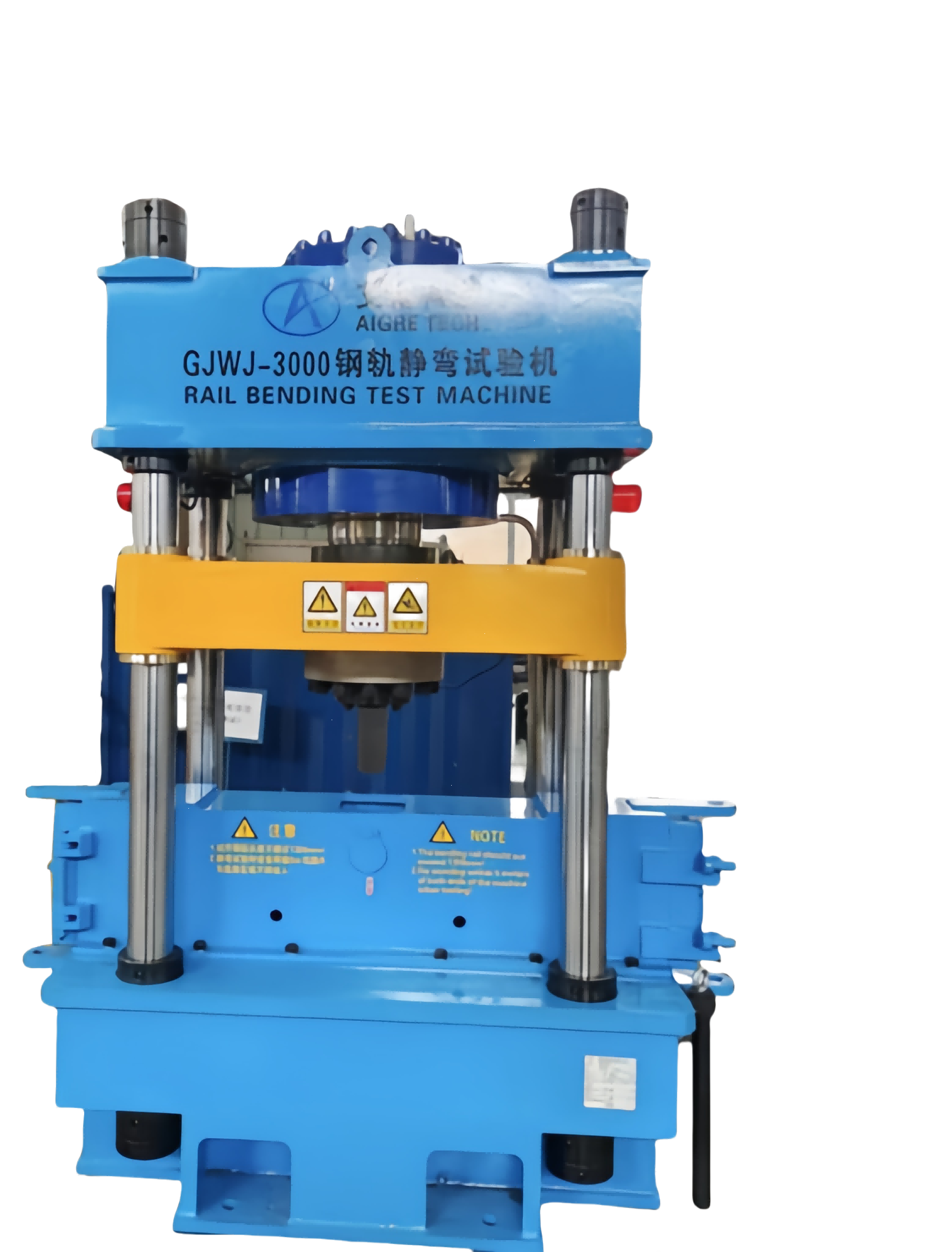

Product Introduction

Suitable for 50kg/m~75kg/m rail welded specimen slow bending test machine, the choice of different pressure head, can realize different national standards of rail welded joints slow bending test machine.

Main Technical parameters

Max loading: 3000 KN

Rated loading: 2800 KN

Power supply: 8KW, 380V（three-phase）

Stroke: 300mm

Loading speed: 20~60KN/s

Host weight: 6500 kg

Host Dimensions: 2100*1100*2450 mm

Offset: 1000mm
